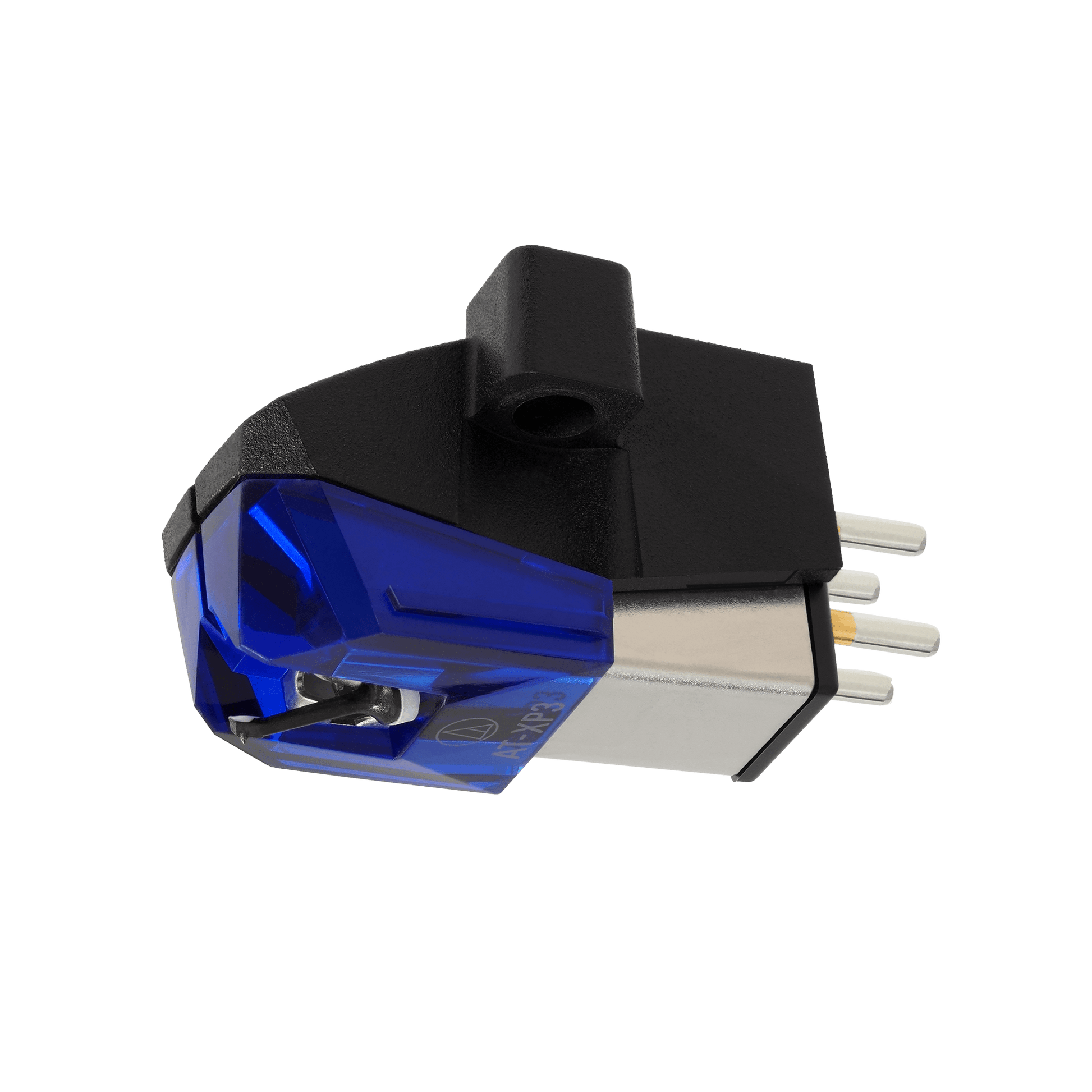

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

0.6 mil conical bonded stylus tip
Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
5.5 mV high-level output
Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
Design offers maximum visibility of the stylus tip
Great tracking and channel separation for high-fidelity sound
AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application

Cartridge & Stylus

Frequency Response	20-18,000 Hz
Channel Separation	20 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	2.0-4.0 g (3.0 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	6.7 k ohms (1 kHz)
Coil Inductance	550 mH (1 kHz)
Output Voltage	5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	2.0 dB (1 kHz)
Stylus Shape	0.6 mil conical
Cantilever	Carbon fiber-reinforced ABS
Static Compliance	20 x 10 – 6 cm / dyne
Dynamic Compliance	6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting	Half-inch
Cartridge Weight	6.2g
Dimensions	17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
Accessories Included	Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model	AT-XP3
Mounting Feature	Half-inch mount
Recommanded Load Capacitance	100 to 200 pF
Replacement Stylus	ATN-XP3
Stylus Size	0.6 mil
Weight	6.2 g (0.22 oz)
